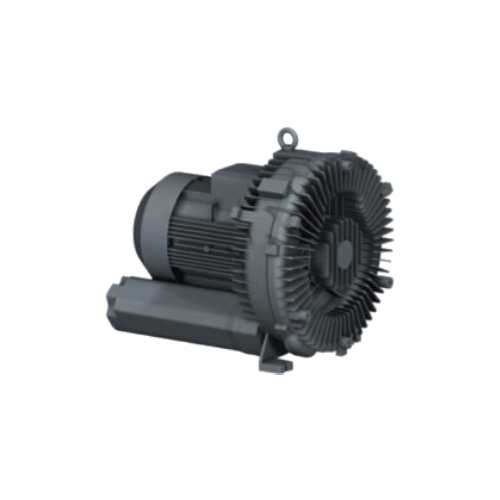

Side Channel Blowers SAMOS SB 0710 – 1400 D0 BUSCH Samos SB 0710, 1100 and 1400 D0 are the larger models of the Samos SB D0 series. These single-stage side channel blowers are suitable for many applications in which effective vacuum and overpressure are required.
Samos side channel blowers can be used wherever pulsation-free air or other gases are used to generate vacuum or overpressure. The large variety of sizes and performance classes mean that Busch can always supply the most effective side channel blower for any application, both in terms of cost and technology. The blower can be installed horizontally or vertically. An extensive range of accessories also allows the blower to be perfectly tailored to the requirements of the application.
Through precise aluminium pressure die casting and high-precision machining Samos SB side channel blowers achieve high differential pressures and pumping speeds with effective compression.
Samos SB side channel blowers compress the pumping medium without any oil or touching parts. The permanently lubricated bearings and effective air cooling allow Samos SB side channel blowers to be totally maintenance-free.
Samos SB side channel blowers are extremely cost-effective and environmentally friendly, thanks to the oil-free compression and energy-efficient drive motor.
Samos side channel blowers work according to the impulse principle. This means that kinetic energy from a rotating impeller is transferred to the pumping medium and converted into pressure. The impeller is mounted directly on the shaft of the motor and, together with the specially shaped housing, forms the side channel. The pumping medium is sucked in, compressed in the side channel and then discharged after one rotation. This way a Samos side channel blower can be used to generate both vacuum and blast air. The motor rated power determines the maximum differential pressure of the blower. The two silencers fitted to the inlet and discharge sides ensure quiet operation.
• Vacuum relief valves
• Pressure relief valves
• Additional silencers
• Thermo switch
| Technical data | Samos SB 0710 D0 | Samos SB 1100 D0 | Samos SB 1400 D0 | ||
| Volume flow | m3/h | 50 Hz | 700 | 1050 | 1370 |
| Max. differential pressure (Δp) – Vacuum | hPa (mbar) | 50 Hz | 150 – 270 | 190 – 360 | 120 – 310 |
| Max. differential pressure (Δp) – Overpressure | hPa (mbar) | 50 Hz | 140 – 260 | 190 – 460 | 110 – 320 |
| Nominal motor rating | kW | 50 Hz | 4.0 – 7.5 | 8.5 – 18.5 | 8.5 – 18.5 |
| Nominal motor speed | min-1 | 50 Hz | 2850 | 2850 | 2850 |
| Noise level (ISO 2151) | dB(A) | 50 Hz | 70 | 74 | 75 |
| Weight approx. | kg | 112 – 128 | 172 – 204 | 174 – 206 | |
| Dimensions (L x W x H) | mm | 496 x 500 x 516 | 702 x 557 x 571 | 702 x 557 x 571 | |
| Gas inlet / outlet | G 2 ½” / G 2 ½” | G 4″ / G 4″ | G 4″ / G 4″ | ||
