Magnetic Drive Pumps Sanso PMD Series

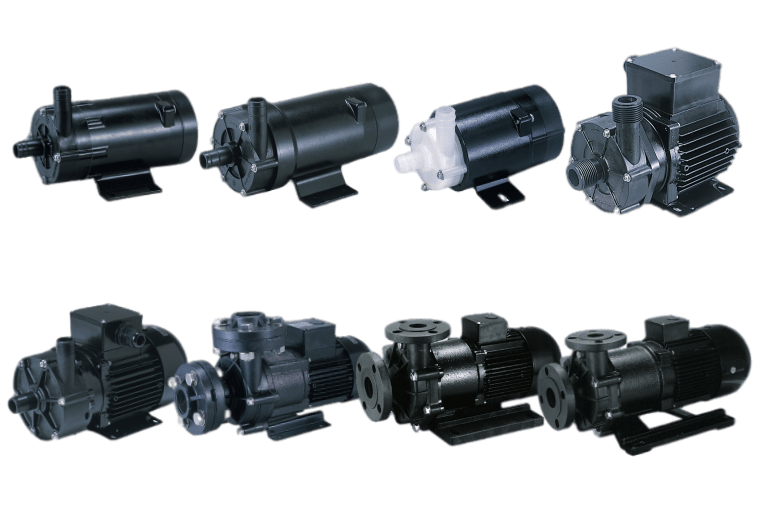

Magnetic Drive Pumps Sanso PMD Series (for chemical and seawater)

Magnetic Drive Pumps Sanso PMD Series (for chemical and seawater) is pumps are manufactured by SANSO, a well-known Japanese brand. This product is available in various models, ranging from PMD-221 to PMD-7533. It is driven by a magnetic system and is resistant to chemical corrosion.

Categories , Tags , , , , ,
Brand:
ขอใบเสนอราคา/REQUEST A QUOTE

Features

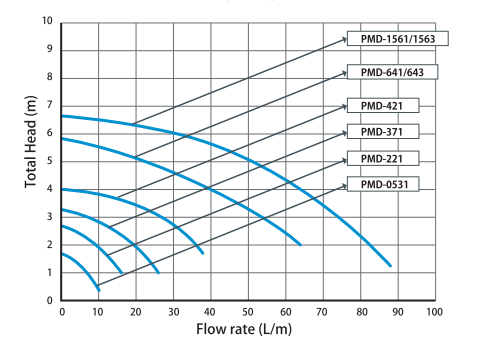

Performance Curve (50Hz)

Specification

 Motor Diameter 50Hz 60Hz
Model Rated Output Phase Rated Voltage Frequency Hose Screw Total head Rated flow rate Total head Rated flow rate
w(50Hz/60Hz) 中 V Hz mm inch m L/min m- L/min
PMD-0531 18 Single 220 50/60 14 - 1 •  0.17 6 •  8 - -
PMD-221 10_15 S ngle 220, 220-240 50/60 14 - 2 •  1 6 •  13 3 •  2 6 •  13
10_15 Single 220, 220-240 50/60 - G3/4 2 •  1 6 •  13 3 •  2 6 •  13
10_15 Sngle 110 50/60 14 - 2 •  1 6 •  13 3 •  2 6 •  13
PMD-371 15/20 Single 220, 220-240 50/60 17 - 2 •  1.5 18 •  22 3 •  2 19 •  26
15/20 Single 220, 220-240 50/60 - G3/4 2 •  1.5 18 •  22 3 •  2 19 •  26
15/20 Single 110 50/60 17 - 2 •  1.5 18 •  22 3 •  2 19 •  26
15/20 Single 110 50/60 - G3/4 2 •  1.5 18 •  22 3 •  2 19 •  26
PMD-421 35/45 Single 220, 220-240 50/60 20 - 3 •  2 21 • 30 4 •  3 26 •  35
35/45 Single 220, 220-240 50/60 - G3/4 3 •  2 21 • 30 4 •  3 26 •  35
35/45 Single 110 50/60 - G3/4 3 •  2 21 • 30 4 •  3 26 •  35
PMD-581 40/60 Single 220, 220-240 50/60 20 - 4 •  3 23 • 35 6 •  5 23 •  35
40/60 Single 220, 220-240 50/60 - G3/4 4 •  3 23 • 35 6 •  5 23 •  35
PMD-641 65/100 Single 110(220) 50/60 26 - 5 •  3 23 • 50 7 •  5 25 •  50
65/100 Single 110(220) 50/60 - G1 5 •  3 23 • 50 7 •  5 25 •  50
65/100 Single 220, 220-240 50/60 26.5 - 5 •  3 23 • 50 7 •  5 25 •  50
65/100 Single 220-240 50/60 - G1 5 •  3 23 • 50 7 •  5 25 •  50
PMD-643 65/100 Three 380•400•415 50/60 - G1 4 •  3 34 • 46 6 •  5 35 •  48
65/100 Three 220(380) 50/60 26 - 5 •  3 23 • 50 7 •  5 25 •  50
65/100 Three 220(380) 50/60 - G1 5 •  3 23 • 50 7 •  5 25 •  50
PMD-1561 120/160 Single 110(220) 50/60 26 - 5.5 •  4 40 • 60 8 •  6 40 •  63
120/160 Single 110(220) 50/60 - G1 5.5 •  4 40 • 60 8 •  6 40 •  63
120/160 Single 220, 220-240 50/60 26.5 - 5.5 •  4 40 • 60 8 •  6 40 •  63
120/160 Single 220-240 50/60 - G1 5.5 •  4 40 • 60 8 •  6 40 •  63
PMD-1563 120/160 Three 380,400.42 50/60 - G1 5 •  4 42 • 56 7 •  5 50 •  72
120/160 Three 220(380) 50/60 26 - 5.5 •  4 45 • 64 8 •  6 45 •  70
120/160 Three 220(380) 50/60 - Gl 5.5 •  4 45 • 64 8 •  6 45 •  70
PMD-2571 250 Single 220, 2.20-240 50 26.5 - 10 •  8 50 • 75 - -
250 Single 220-240 50 - Gl 10 •  8 50 • 75 - -
250 Single 110(220) 60 26.5 - - - 10 •  8 55 •  80
250 Single 110(220) 60 - Gl - - 10 •  8 55 •  80
250 Single 220 60 26.5 - - - 10 •  8 45 •  70
PMD-2573 250 Three 380•400•415 50 26.5 - 10 •  8 70 • 95 - -
250 Three 380•400•415 50 - Gl 10 •  8 70 • 95 - -
250 Three 220(380) 50 26.5 - 10 •  8 70 • 95 - -
250 Three 220(380) 50 - G1 10 •  8 70 • 95 - -
PMD-4033  400 Three 380•400•415 50 - Gl 1/2 10 •  6 130 • 230 - -
400 Three 380 50 - Gl 1/2 10 •  6 120 • 200 - -
400 Three 380-415 60 - Gl 1/2 - - 10 •  6 140 •  240
PMD-7533 750 Three 380, 380-415 50 - Gl 1/2 15 •  12 130 • 210 - -
750 Three 380 50 - Gl 1/2 14 • 10 135 • 230 - -
750 Three 380-415 60 - Gl 1/2 - - 15 •  12 155 •  225

TYPE 2

 Motor Diameter 50Hz 60Hz
Model Rated Output Phase Rated Voltage Frequency Total head Rated flow rate Total head Rated flow rate
w(50Hz/60Hz) 中 V Hz m L/min m- L/min
PMD-15013A-E3 1500 Three 380•400•415 50 JIS 10K Flange 50Ax40A 20.5 •  9.5 120 • 355 - -
PMD-22013A-E3 2200 Three 380•400•415 50 JIS 10K Flange 50Ax40A 25 •  13.5 120 • 360 - -
PMD-37013A-E3 3700 Three 380•400•415 50 JIS 10K Flange 50Ax40A 19.2 •  14.8 250 • 360 - -
