The MITSUBISHI SP-KR Series 4P, in a horizontal type configuration, is a standard electric motor with 2-wire, single-phase power connection. It operates at a voltage of 220V and has the capability to support motor sizes ranging from 1/4HP to 1/2HP. The motor has a rotational speed of 1450RPM (4P) and operates at a fixed electrical frequency of 50 Hz. The SP-KR Series motor is well-suited for general-purpose applications and can be used with various tools and equipment such as drills, fans, blowers, and many others.
The MITSUBISHI SP-KR Series 4P is a single-phase electric motor that conforms to the JIS (Japanese Industrial Standard) and IEC (International Electrotechnical Commission) standards. It has been developed by Mitsubishi Electric Japan, a company with extensive experience in motor production since the year 2450 (Note: This date seems incorrect; it likely should be 1950 or another date in the 20th century).
| MODEL | SP-KR |
|---|---|
| Horsepower | 1/4 -1/2 HP |
| Starting system | Spilit-Phase Start |
| Motor type | Floor stand |
| Rotational speed | 1450 RPM |
| Electrical voltage | 220V.A.C/1 PHASE |
| Ingress Protection (IP) ratings | IP 20 |

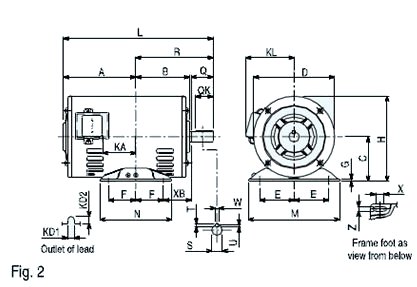

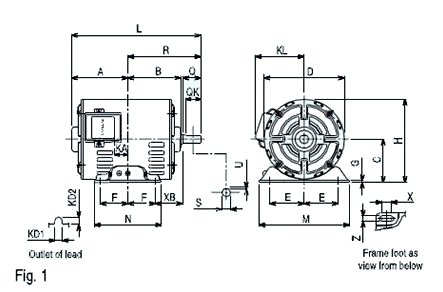

| Fig | Motor | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | KA | KD1 | KD2 | KL | L | M | N | X | XB | Z | |
| 1 | 92 | 87 | 71 | 131.2 | 56 | 45 | 3.2 | 136.6 | 21.3 | 12 | 12 | 82 | 212 | 148 | 110 | 15 | 45 | 9 |
| 101 | 87 | 71 | 131.2 | 56 | 45 | 3.2 | 136.6 | 30.3 | 12 | 12 | 82 | 221 | 148 | 110 | 15 | 45 | 9 | |
| 2 | 125 | 97 | 80 | 146.6 | 62.5 | 50 | 3.2 | 153.3 | 44.5 | 12 | 12 | 92 | 265 | 165 | 130 | 10 | 50 | 10 |
